It is possible to parse an API request that has a multipart/related content type without using gateway script.

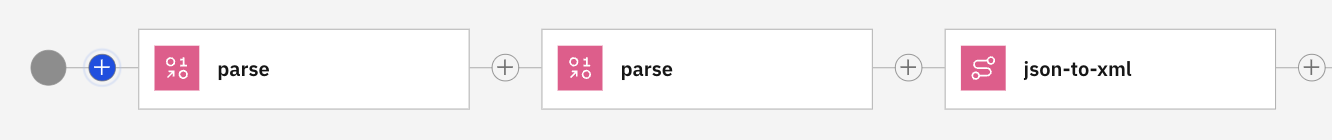

The key thing here is having two parses.

alt text

The first parse extracts the multipart data and puts each entry into an array called message.attachment.

In a second parse we tell the assembly to parse the contents of one of the attachments.

      - parse:
          version: 2.2.0
          title: parse
          parse-settings-reference:
            default: apic-default-parsesettings
          use-content-type: false
          input: message.attachments[0]

message.attachments[0] will now be parsed. This can be referenced like below in other policies.

      - json-to-xml:
          version: 2.0.0
          title: json-to-xml
          root-element-name: json
          always-output-root-element: false
          unnamed-element-name: element
          input: message.attachments[0]
          output: message.attachments[0]

Full Sample API

swagger: '2.0'
info:
  version: 1.0.0
  title: multipartparse
  x-ibm-name: multipartparse
basePath: /multipartparse
x-ibm-configuration:
  cors:
    enabled: true
  gateway: datapower-api-gateway
  type: rest
  phase: realized
  enforced: true
  testable: true
  assembly:
    execute:
      - parse:
          version: 2.2.0
          title: parse
          parse-settings-reference:
            default: apic-default-parsesettings
          use-content-type: false
      - parse:
          version: 2.2.0
          title: parse
          parse-settings-reference:
            default: apic-default-parsesettings
          use-content-type: false
          input: message.attachments[0]
      - json-to-xml:
          version: 2.0.0
          title: json-to-xml
          root-element-name: json
          always-output-root-element: false
          unnamed-element-name: element
          input: message.attachments[0]
          output: message.attachments[0]
  activity-log:
    enabled: true
    success-content: activity
    error-content: payload
paths:
  /:
    get:
      responses:
        '200':
          description: success
          schema:
            type: string
      consumes: []
      produces: []
    put:
      responses:
        '200':
          description: success
          schema:
            type: string
      consumes: []
      produces: []
    post:
      responses:
        '200':
          description: success
          schema:
            type: string
      consumes: []
      produces: []
    delete:
      responses:
        '200':
          description: success
          schema:
            type: string
      consumes: []
      produces: []
    head:
      responses:
        '200':
          description: success
          schema:
            type: string
      consumes: []
      produces: []
    patch:
      responses:
        '200':
          description: success
          schema:
            type: string
      consumes: []
      produces: []
securityDefinitions: {}
security:
  - {}
schemes:
  - https

Sample Curl Command

curl -v -F key1=@manifest.json -F upload=@dotdot.json   https://mydatapower/dev/sandbox/multipartparse/ -k -H "content-type: multipart/related"
